Key Features

• Model: Hikvision iDS-7108HQHI-M1/S

• Video Compression: H.265 Pro+ / H.265 for efficient storage

• Encoding Resolution: Up to 3K/5MP Lite @12fps

• Decoding Capability: Supports up to 1080p@15fps

• AI Features: AcuSense with human/vehicle classification, face detection

• Camera Inputs: 8 analog (HDTVI/AHD/CVI/CVBS/IP) + up to 12 IP channels

• Video Output: HDMI and VGA (up to 1080p)

• Storage: 1× SATA interface, supports up to 10TB HDD

• Network: 1× RJ-45 (10/100 Mbps), supports remote access via Hik-Connect

• USB Ports: 2× USB 2.0

• Power Supply: 12V DC, ≤12W (without HDD)

• Form Factor: Mini 1U (200 × 200 × 45 mm)

Product Description

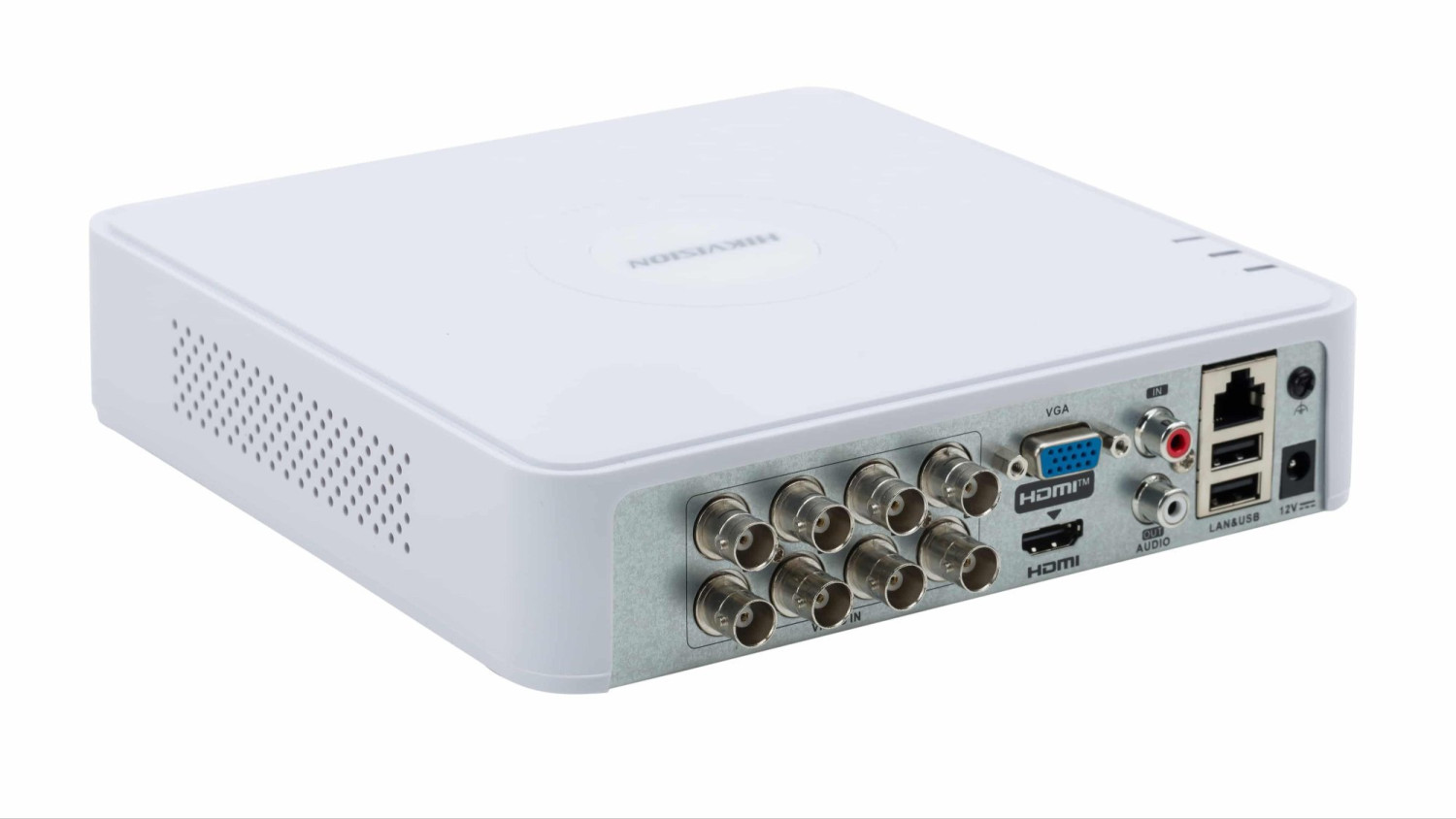

The Hikvision iDS-7108HQHI-M1/S is an 8-channel Mini 1U DVR equipped with AcuSense technology, offering intelligent detection and classification of humans and vehicles for reduced false alarms. With support for both analog and IP cameras, it can handle up to 12 channels total and record in up to 5MP Lite resolution.

Efficient H.265 Pro+ compression saves on bandwidth and storage, while HDMI and VGA outputs provide crisp 1080p display. A single SATA interface supports up to 10TB of storage, making it ideal for small to medium-sized surveillance systems that require intelligent detection and long-term reliability.
